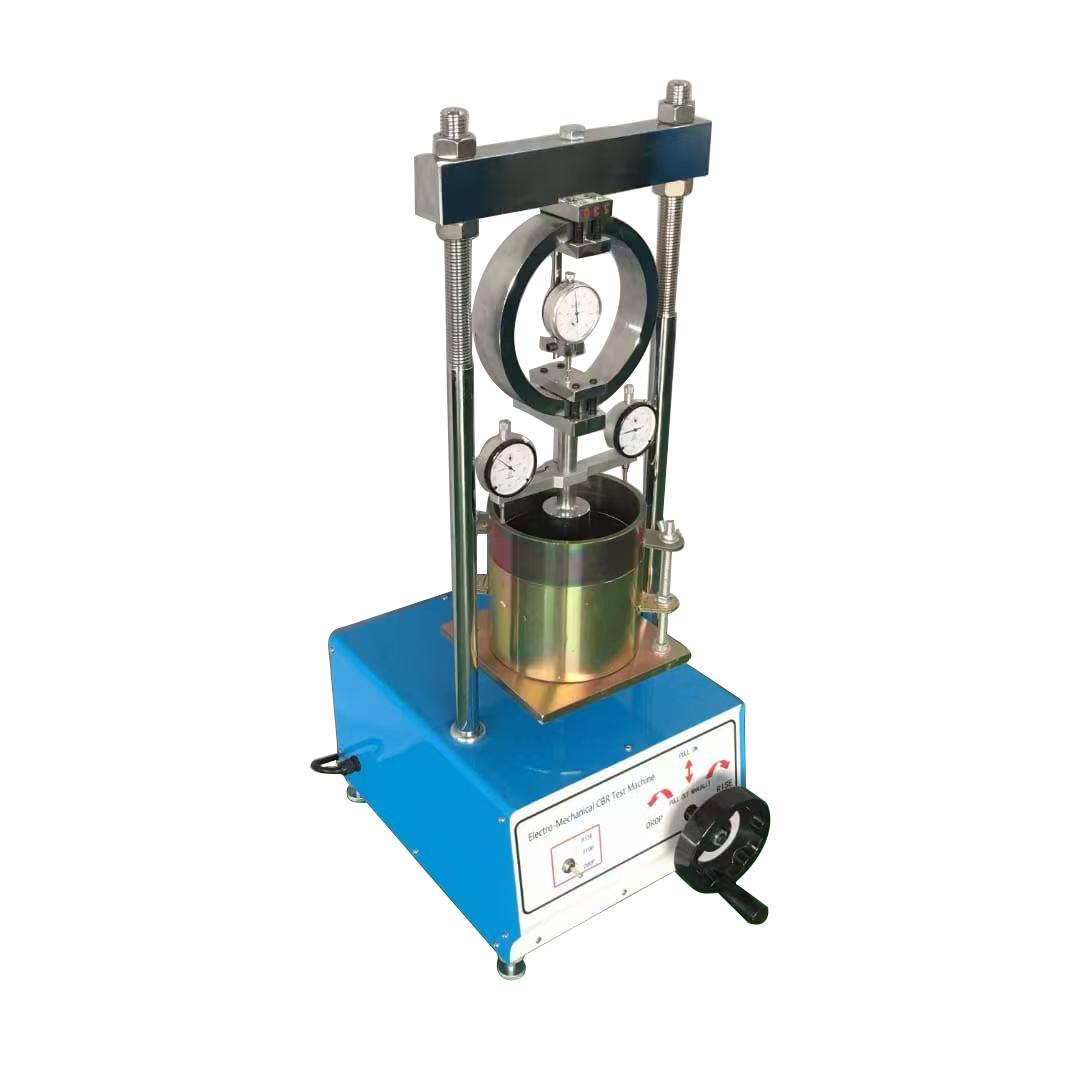

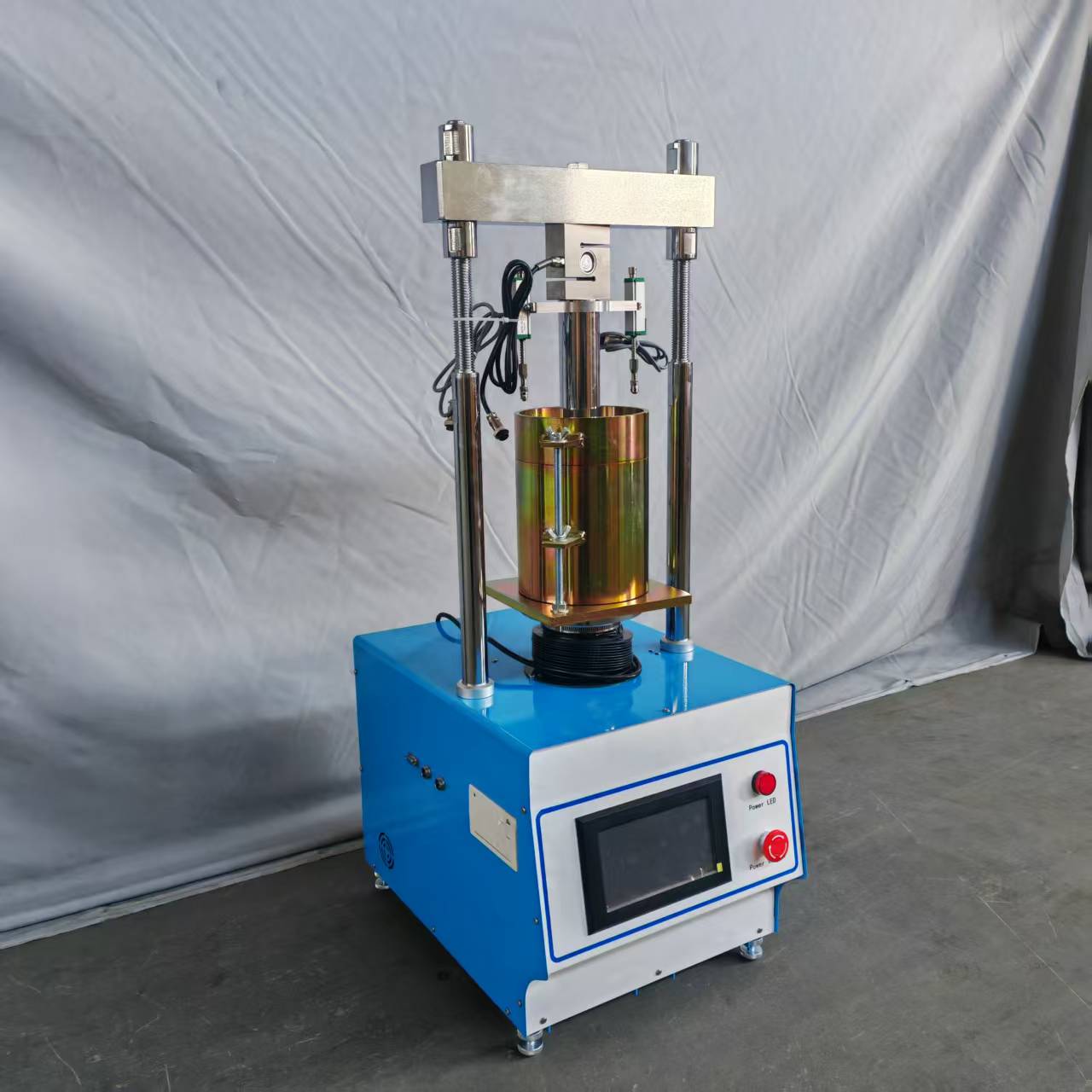

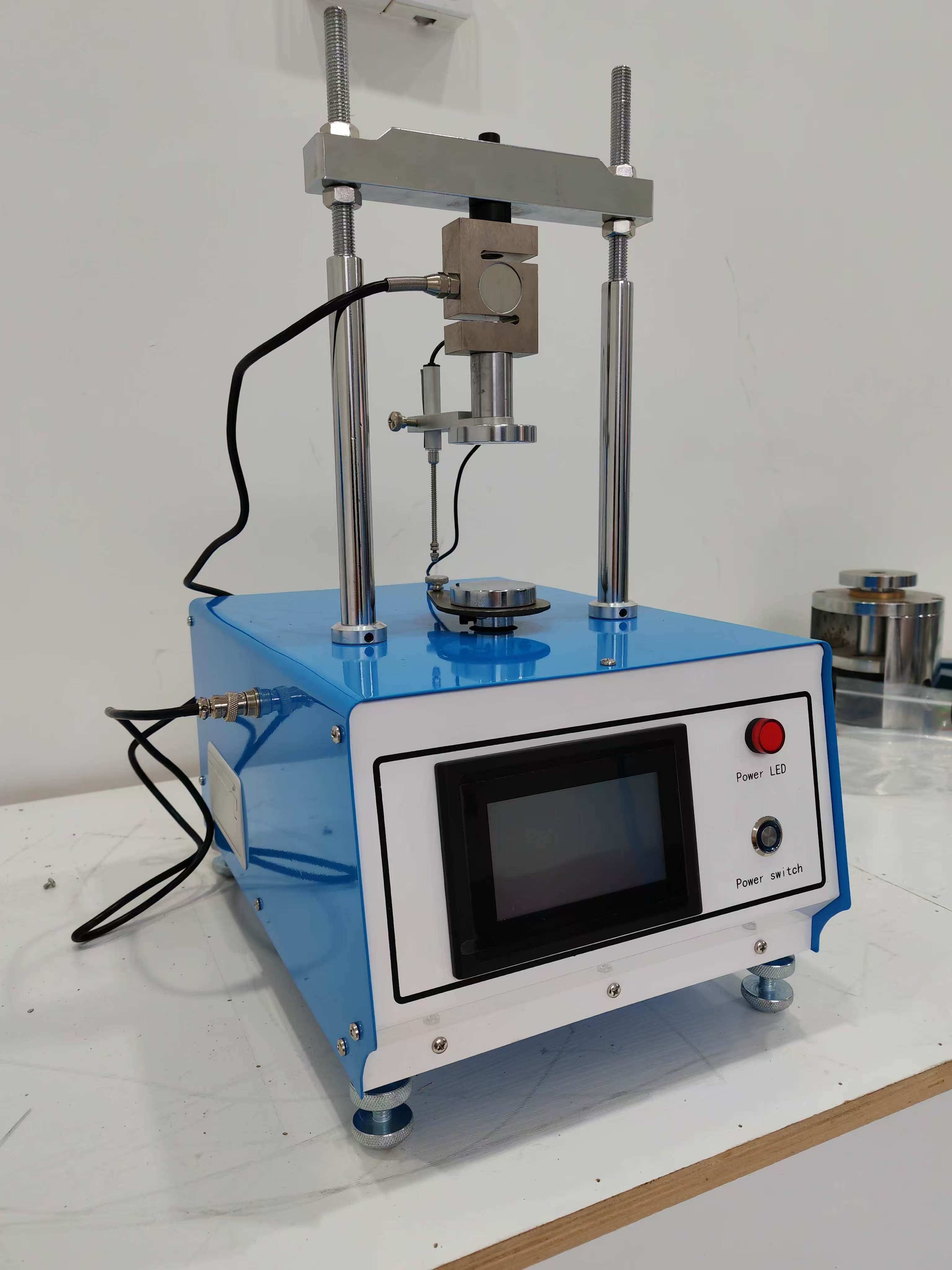

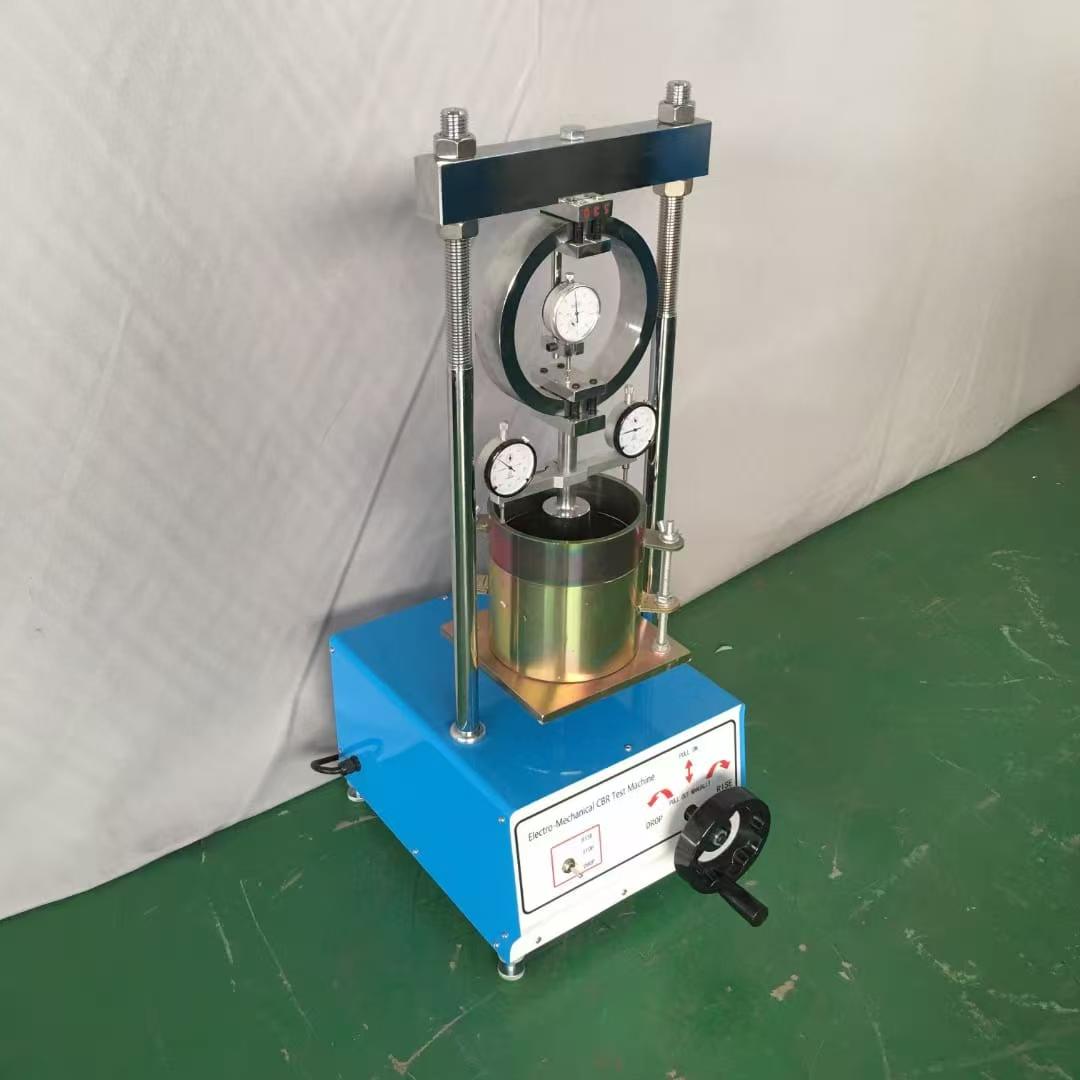

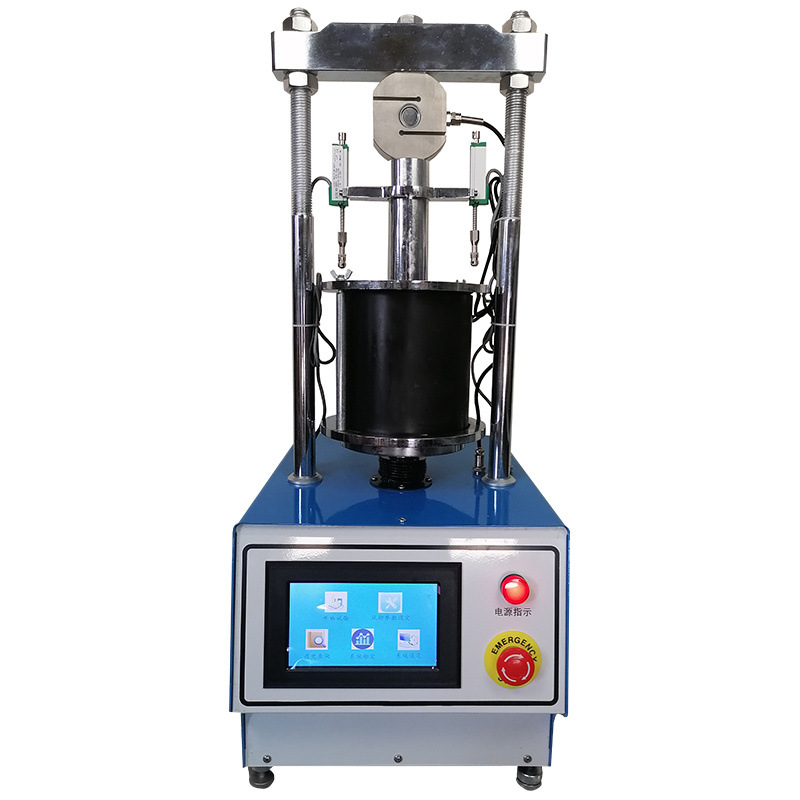

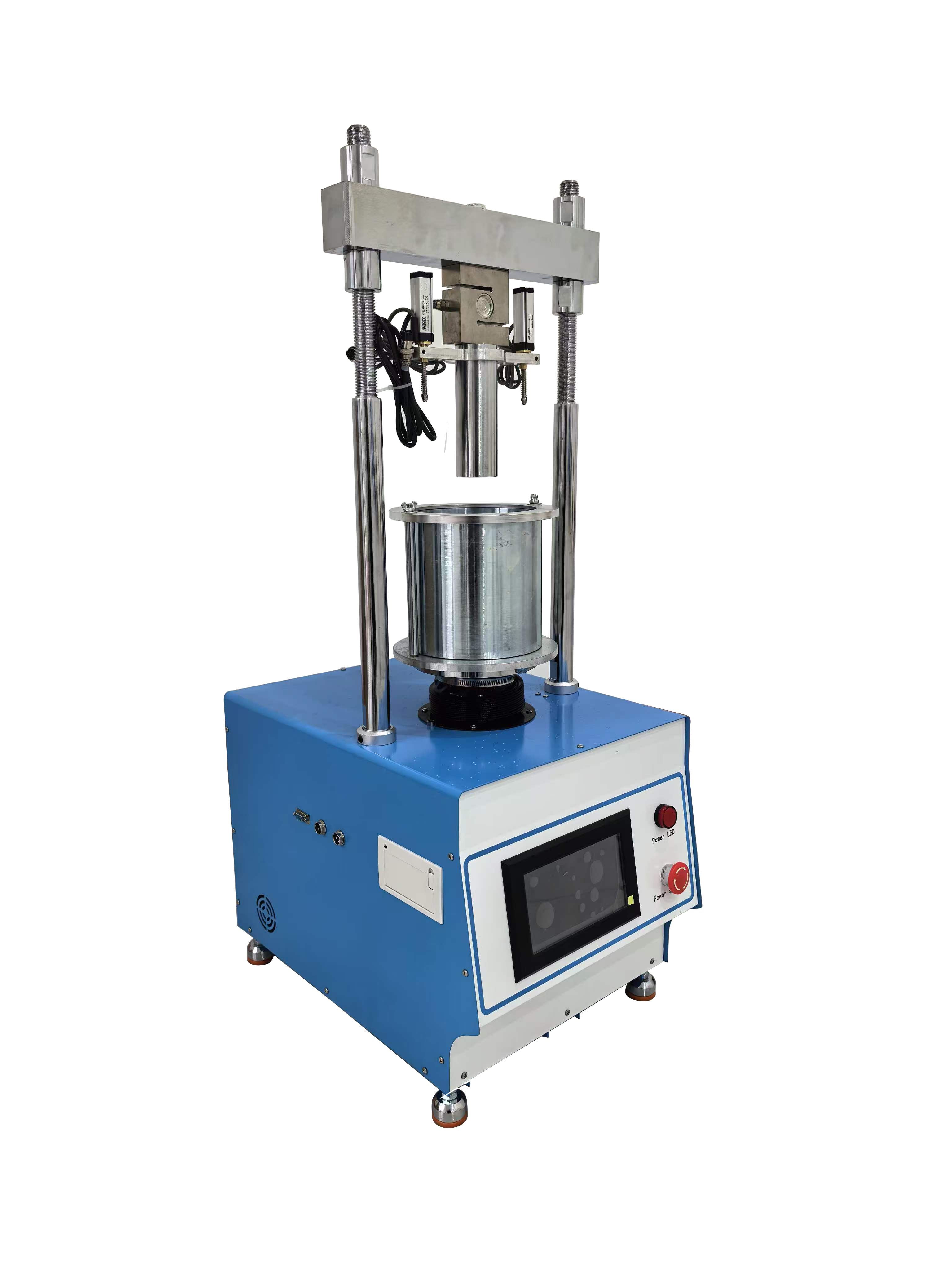

The CBR Test Machine is designed for testing soils and mix materials (with soil grain sizes less than 40mm) compacted in a CBR mold. It serves to confirm the bearing load capacity of pavements, roadbed subcrusts, and the design material layers of roadbeds. Composed of a robust and compact two-column frame with an adjustable upper crossbeam, it is driven by an electromechanical ram featuring a maximum capacity of 50 kN, integrated alongside a real-time data acquisition and processing system.
During operation, the penetration piston is loaded into the soil sample at a constant rate, measuring the applied load and piston penetration at predetermined intervals. The control unit displays all menu options simultaneously, enabling operators to access parameters seamlessly, enter numeric values, and view testing data in real-time.
Testing speed is maintained at 1.27 mm/min in compliance with ASTM, EN, AASHTO, BS, and NF test specifications.
Equipped with a maximum capacity of 50 kN load cell, penetration piston, and linear potentiometric displacement transducer.
Features quick up and down adjustment buttons on the front panel for simple positioning of the platen.
Enables real-time tracking, processing, and visualization of force and displacement metrics throughout the run.
The test speed is maintained at a constant rate of 1.27 mm/min, suitable for ASTM, EN, AASHTO, BS, and NF standards.
It is designed to test soils and mixed materials with a maximum grain size of less than 40mm compacted inside a CBR mold.
We prioritize honest business practices combined with competitive pricing structures and highly professional service throughout the export process.
Yes, we extend a 100% satisfaction guarantee on all items. If you are not satisfied with the quality or service, feedback can be sent immediately for resolution.
Delivery typically occurs within 7 to 20 days after we confirm your requirements.
We support L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
